Summary: Centrally located in Western Europe, Belgium was bound to embrace high-speed rail. Four lines covering nearly 200 kilometres were eventually built over a period of 17 years. Integrating the lines into a densely populated country proved to be a real challenge. The other challenge was gaining acceptance for this network: the TGV arrived at a time when Belgium was becoming a federal state comprising three regions, with planning permission becoming a subject of political bargaining.
Note:For educational purpose only. This page is meant purely as a documentation tool and has no legal effect. It is not a substitute for the official page of the operating company, manufacturer or official institutions. It cannot be used for staff training, which is the responsibility of approved institutions and companies.
Key summary

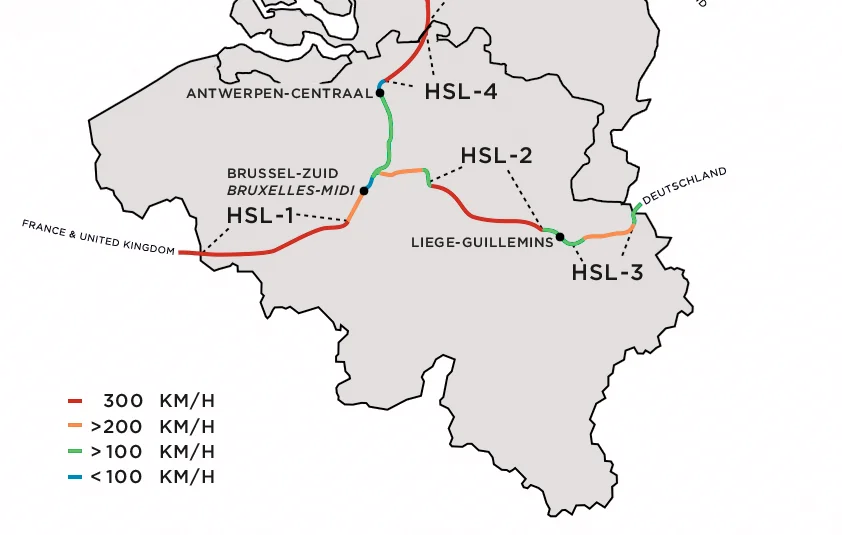

Belgium’s first high-speed line, HSL 1, fully opened in December 1997, connecting Brussels to the French border and enabling direct services with TGV trains toward Paris, London and France. Subsequent lines—HSL 2 (2002), HSL 3 (2009), and HSL 4 (2009)—extended the network toward Liège, Germany, and the Netherlands, via a new station under Antwerp-Central. These lines allow trains like Thalys and Eurostar to pass through Belgium efficiently.
Today, Belgium’s HSR network is fully integrated into Europe’s high-speed system, making Brussels a major rail hub with rapid international connections. Trains also run on the conventional rail network to reach main stations as Brussels-Midi, Liège -Guillemins of Antwerp-Central.
NETWORK & SERVICES
Infrastructure manager:
Infrabel 100% of Belgian’s State
Headquarter:
Brussels
First opening:
December 1997 (full opening of L1)
Network lenght:
205 kilometrers >250km/h Trains also run on the conventional rail network
Operators:
Thalys (†), Eurostar, SNCF Inoui, ICE DB Fernverkehr
Definition of High Speed Train
The definition of a high-speed train varies by region, but generally, it refers to trains that operate at speeds of at least 250 km/h (155 mph) on newly built lines and 200 km/h (124 mph) on upgraded lines. In Europe, for example, the UIC (International Union of Railways) considers a commercial speed of 250 km/h as the principal criterion for high-speed rail. In the United States, the definition can include trains operating at speeds ranging from 180 km/h (110 mph) to 240 km/h (150 mph).
TMST Class 373 GEC-Alsthom, BN, ACEC, Brush, Metro-Cammel SNCF 3201/2-3231/32 UK Class 373 SNCB 3101/2-3107/8 1993 –
…
A consortium led by GEC-Alstom won the initial contract for 30 18-car trainsets. They run with DC motors. The contract was subsequently extended to include an additional trainset and a further 7 NOL (North Of London) trainsets – each with 14 cars – to serve Birmingham, Manchester and beyond. These destinations were never called.
TGV-R (Réseau) GEC-Alsthom 1993 –
…
To gain access to Belgium (3kV DC) and the Netherlands (1500V DC), the SNCF detached to Thalys 10 TGV-R trainsets no. 4531 to 4540 from its fleet, which made up the third of the four TGV-Réseau SNCF sub-series. They could run on three currents and two voltages, as they do in France. However, they could not travel to Germany.
The TGV-Réseau trains were intended for cross-country routes that bypass Paris, such as Lyon-Nantes or Lille-Montpellier. They are derived from the TGV-Atlantique trains and were numbered in the 500 series for 2-current trains and the 4500 series for 3-current trains. The surplus allowed some TGV-Réseau trains to be assigned to Thalys for service in the Benelux countries.
Delivered between 1996 and 1997, 17 ‘PBKA’ (Paris-Bruxelles-Amsterdam/Cologne) trains were added to the Thalys fleet. They are registered with the SNCF under the 4300 series, and differ from the TGV-R trainsets in the new design of the power cars. They are four-current with switchgear for 15kV and the PZB system in Germany, as well as the SNCB’s TBL2 system.
The ICE 3 met EU interoperability standards with distributed motors and no front power cars. The BR406 multi-system trains served the Netherlands, Belgium, and France, but frequent breakdowns led to their withdrawal by 2024 and subsequent sale by DB. They have been replaced by the ICE 3 Neo.
e320 Class 374 Siemens Eurostar Class 375 (UK) 2015 –
…
In October 2010, Eurostar announced the winner of a call for tenders to extend the fleet: it was Siemens. This did not go down well in Paris, which was too used to Alstom. Based on the Velaro platform, the e320 is a derivative of the ICE 3. Eurostar ordered 17 18-car trainsets, with asynchronous motors. The first trainset entered service in 2015.
ICE Neo BR408 Siemens DB Fernverkehr BR408 2024 –
…
The poor performance of the BR 406 ICE 3 trains in Belgium prompted Deutsche Bahn to find a quick solution. This was provided by the ICE 3 Neo, a train based on the Velaro platform, which did not require significant design and certification costs. The Neo trains replaced the ICE trains from 2024–2025.
TGV-M Avelia Horizon Alstom 2027 –
…
The TGV M (“M” for modular) is the result of the new high-speed passenger train platform Avelia Horizon from Alstom. It has a broadly similar design to the TGV Duplex sets, with double deck design and 2 power cars more short. Expected in service in 2027, including in Belgium as TGV Inoui with ETCS.
➤ More details
Celestia Alstom 2031 –
…
In October 2025, Eurostar has announced a €1·4bn order for 30 Alstom Avelia Horizon double-deck high speed trainsets, with options for 20 more which would take the total value to €2bn. They could operate through the Channel Tunnel in pairs to give trains of equivalent length to the current fleet.
